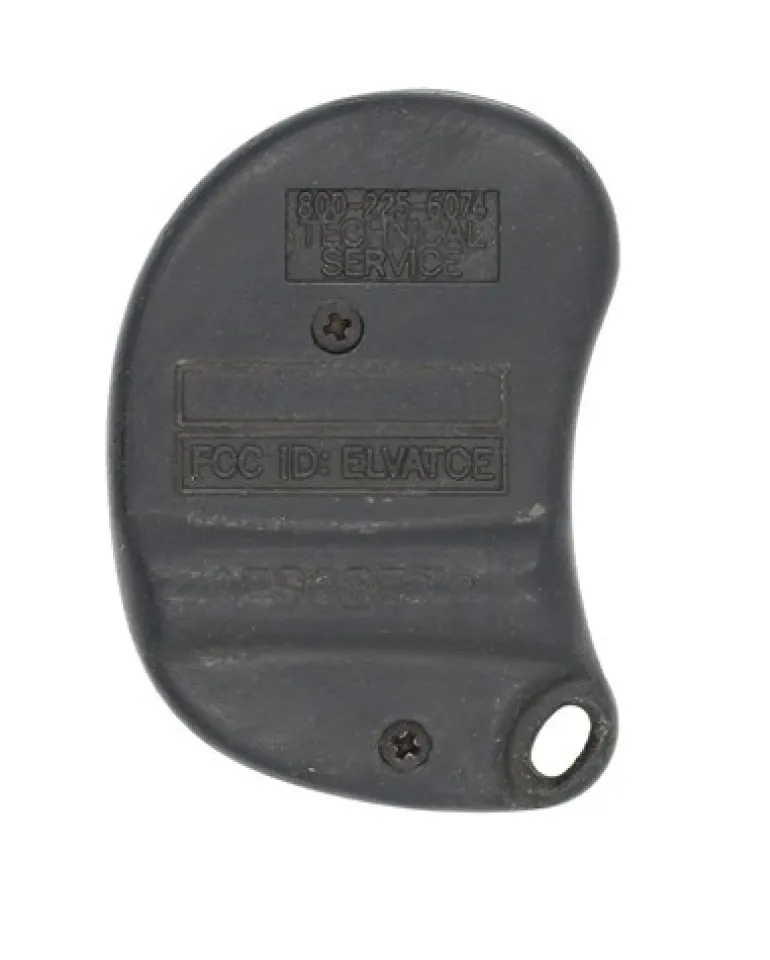

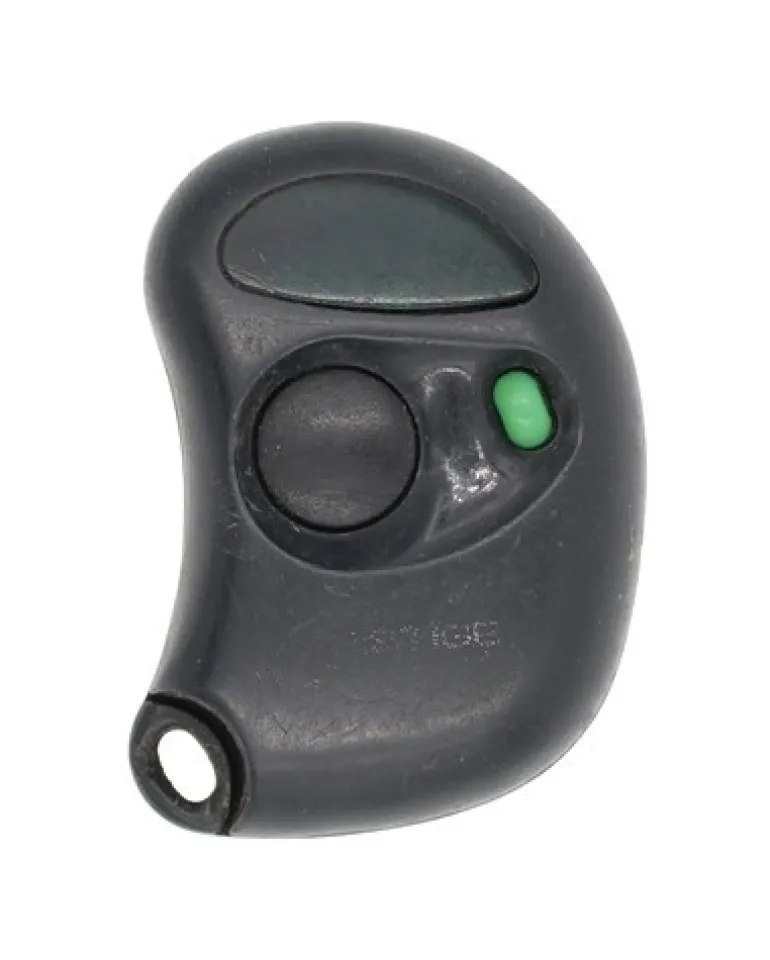

Prestige ELVATCE APS02BT2 Key Fob Remote

Remote control for a Prestige alarm system. This key fob remote will need to be programmed to your alarm system (see below).

Compatible with the following Aftermarket installed vehicle security systems:

• APS15CH
• APS25CH

Note:
Because the system may be capable of sounding a siren, the vehicle horn, or both, where the siren chirp is referenced below, the siren may chirp, the horn may beep, or both devices may sound.

Note:
It is important to remember that during the programming mode, each individual step must be completed within 15 seconds of the previous step. If the 15 second time limit expires between steps, the unit will automatically exit the program mode. Any time the ignition key is turned off while in the program mode, the system will immediately exit program mode. Both 15 second expiration, and ignition turning off while in the program mode will be indicated by a long chirp from the siren & or horn.
Non alarm models will flash the parking lights only to confirm the transmitter code has been learned and stored.

TO PROGRAM ADDITIONAL TRANSMITTERS:

1. Enter the vehicle, and turn the ignition key to the “on” position.

2. Press and release the valet push-button switch three times.

3. The dash LED will flash once, and the siren will “chirp” once, indicating the system is ready to accept programming for channel 1 or the arm/ disarm and panic functions.

4. You can assign any of the three transmitter button functions listed below to channel 1.

a. Pressing button #1 on the keychain transmitter.
b. Pressing button #2 on the keychain transmitter.
c. Pressing both buttons simultaneously on the keychain transmitter.

5. Press and hold the selected choice a, b, or c above, until the siren emits a long “chirp” to confirm that programming of channel 1 was successful.

6. Press and release the valet push-button switch one time.

7. The dash mounted LED will flash 2 times, and the siren will “chirp” indicating that the system is ready to accept programming for the unlock/ panic channel.
(If you desire one button to control lock & unlock, move on to step 9)

8. Press and hold the selected remaining choice a, b, or c above, until the siren emits a long “chirp” to confirm that programming of unlock channel was successful.

9. Press and release the valet push-button switch one time.

10. The dash mounted LED will flash 3 times, and the siren will “chirp” indicating that the system is ready to accept programming for channel 2, or the pulsed ground output for remote trunk release, remote car starter, etc.

11. Press and hold the selected remaining choice a, b, or c above, until the siren emits a long “chirp” to confirm that programming of channel 2 was successful.

12. Press and release the valet push-button switch one time.

13. The dash mounted LED will flash 4 times, and the siren will “chirp”
indicating that the system is ready to accept programming for channel 3, or the additional pulsed ground output if available on your model.

Note:
If the program switch is operated again, the circuit will recycle through the program mode. In other words, press 1 time to access the lock function, 2 times to access the unlock function, 3 times to access the start function. When programming is complete, simply turn off the ignition switch to exit the program mode.

The key fob you are going to purchase from us is used or as we like to say “previously loved”. We recycle key fobs and put them through a rigorous refurbishing process so we can guarantee our products and offer them at a reasonable price along with saving the environment. So, if you are good with all of this, what are you waiting for? Make your life easier, order a key fob from us and save the world!
